Instruction: Erect a perpendicular from the point on the line.
Goal: 1L 3E
- Perpendicular Bisector
- Angle Bisector
Previous level: 2.6
Next level: 2.8
Let O be the point, and A and B two arbitrary points on the line so that O is between them.
- Construct the angle bisector of ∠AOB

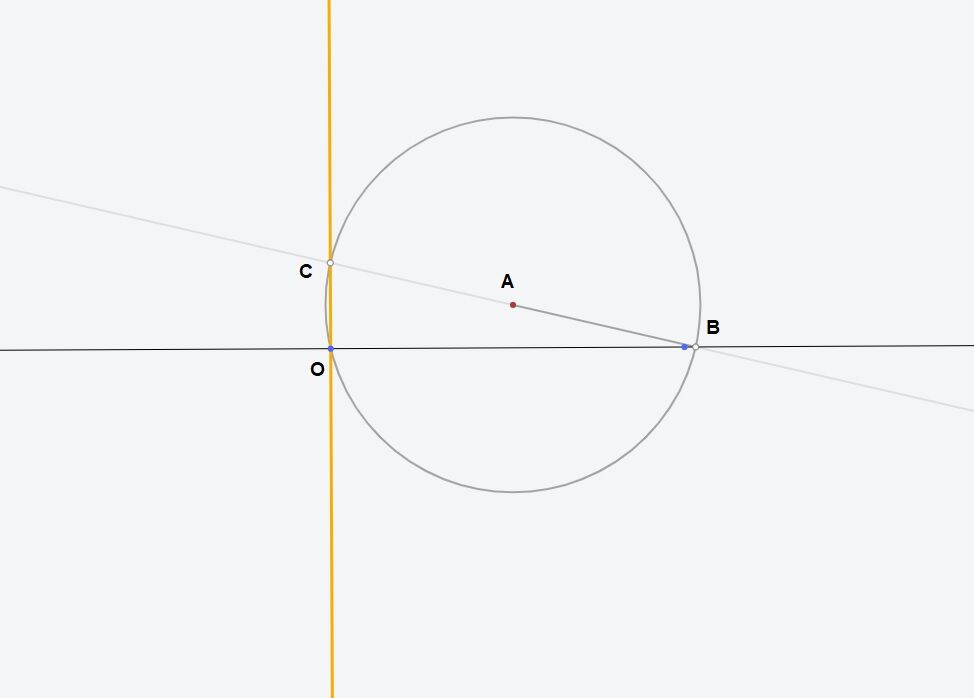

Let O be the point.
- Construct a circle with an arbitrary center A not on the line and radius OA, intersecting the line at B
- Construct line AB, intersecting circle A at C
- Construct line OC
Solution 1L is simple as a line is an angle of 180°, so its angle bisector will divide it into two angles of 90° and will therefore be perpendicular to it. Just have the vertex of the 180° angle be point O.
Solution 3E makes use of Thales's theorem. You are constructing the inscribed triangle OBC with its side BC a diameter of the circle, which makes OBC a right triangle with ∠BOC=90°.
